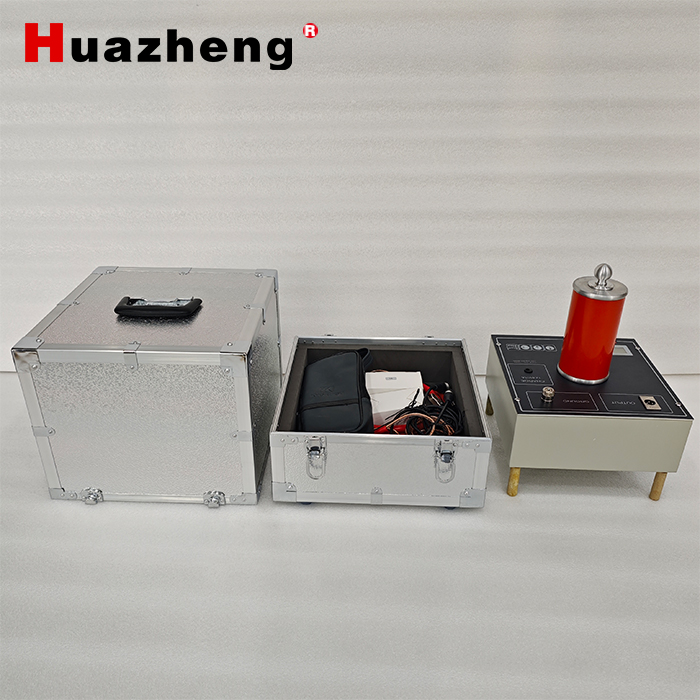

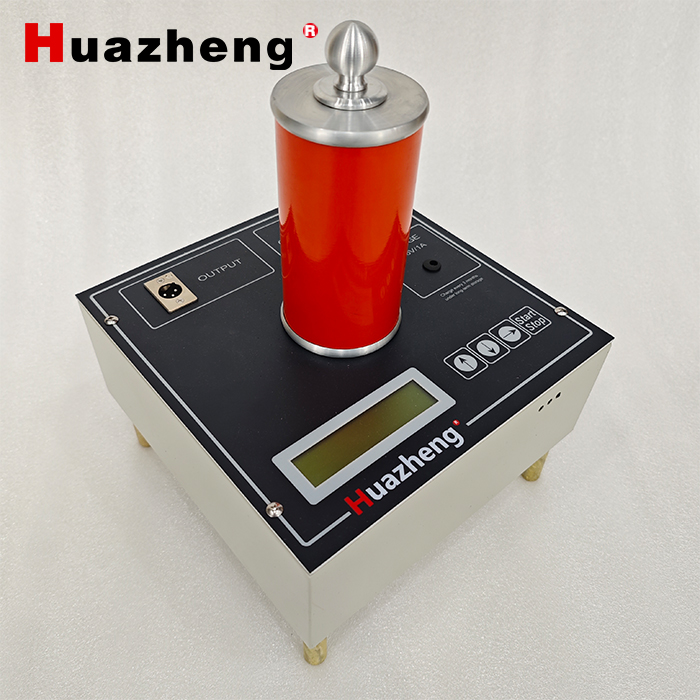

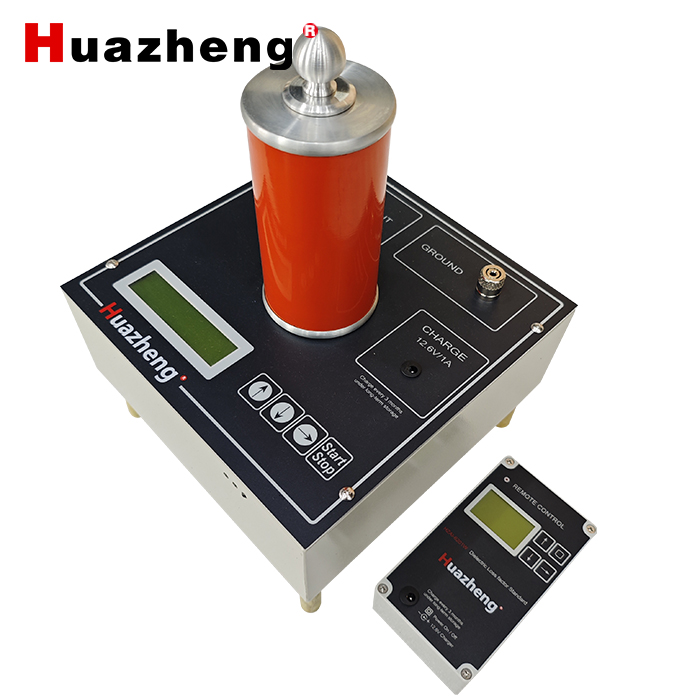

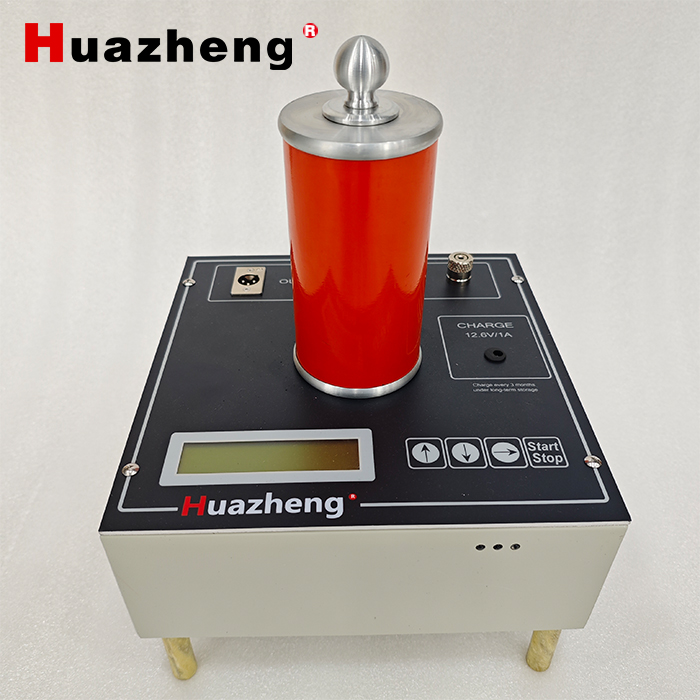

HZAI-6201W is 100pF/12kV high precision capacitance and dissipation factor standard. Which has following feathers:

(1)High precision SF6 filled standard capacitor with full shielded structure.

(2)30 dissipation factor ranges. DF/PF and serial/parallel mode selectable.

(3)Key operated.

(4)LCD display, powered with rechargeable battery.

I. Specifications

Principle Model:     RC serial

Main Capacitance:    100pF

Maximum voltage:         12kV

Capacitance Accuracy:   reading*0.5% + 0.1pF(*)

Dissipation Factor Accuracy:  reading*0.5% + 0.01%(*)

Dissipation Factor Ranges(%): 0.000, 0.005, 0.010, 0.020, 0.030, 0.040,

0.050, 0.060, 0.070, 0.080, 0.090, 0.100,

0.200, 0.300, 0.400, 0.500, 0.600, 0.700,

0.800, 0.900, 1.000, 2.000, 3.000, 4.000,

5.000, 6.000, 7.000, 8.000, 9.000, 10.00(**)

Operation Temperature:   23 ± 2 °C

Operation Humidity:    <70%

Charging Power Supply:   100~240VAC, 50/60Hz

* All readings are manufacturer calibrated data. The actual data are stored in the standard and may slightly differ from rated value. It is strongly recommended that the standard should be recalibrated by local Institute of Metrology.

** Dissipation factor for RC serial model is proportional to frequency. Manufacturer calibrated data are tested at 50.00Hz. If local frequency is not exact 50.00Hz, frequency calibration for higher accuracy is recommended.
