Main technical characteristics and indicators of transformer winding deformation tester

1、Main Technical Characteristics

 Characteristics of transformer windings are measured with frequency sweep method. Deformations of windings such as distortion, swell or displacement of 6kV and above transformer are measured by detecting amplitude-frequency response characteristics of each winding, not requiring lifting of transformer enclosure or disintegration.

 Quick measuring, measuring of a single winding is within 3 minutes.

 High frequency accuracy, higher than 0.001%.

 Digital frequency synthesis, with higher frequency stability.

 5000V voltage isolation fully protects safety of the testing computer.

 Able to load 9 curves at the same time and automatically calculate parameters of each curve and diagnose winding deformations to provide the reference diagnosis conclusion.

 Analysis software has powerful functions and software and hardware indicators satisfy national standard DL/T911-2016. (IEC60076-18, optional)

 Software management is humanized with high degree of intelligence. You only need to click a key to complete all measurements after setting of parameters.

 The software interface is concise and vivid, with clear menus of analysis, save, report export, print, etc.

2、Main Technical Indicators

 Measuring speed: 1 min- 2 min for single-phase winding

 Output voltage: Vpp-25V, adjusting automatically in test

 Output impedance: 50Ω4

 Input impedance: 1MΩ (the response channel is built with 50Ω matching resistance)

 Frequency scan scope: 10Hz-2MHz (10Hz-30MHz, optional)

 Frequency accuracy: 0.001%

 Frequency scan manner: linear or logarithmic, frequency sacn interval and number of sweep points are freely settable

 Curve display: amplitude-frequency curve (phase-frequency curve, optional)

 Width of measuring dynamic range: -100dB~20dB

 Supply voltage: AC100-240V 50/60Hz

 Tester weight: only 3.8kg

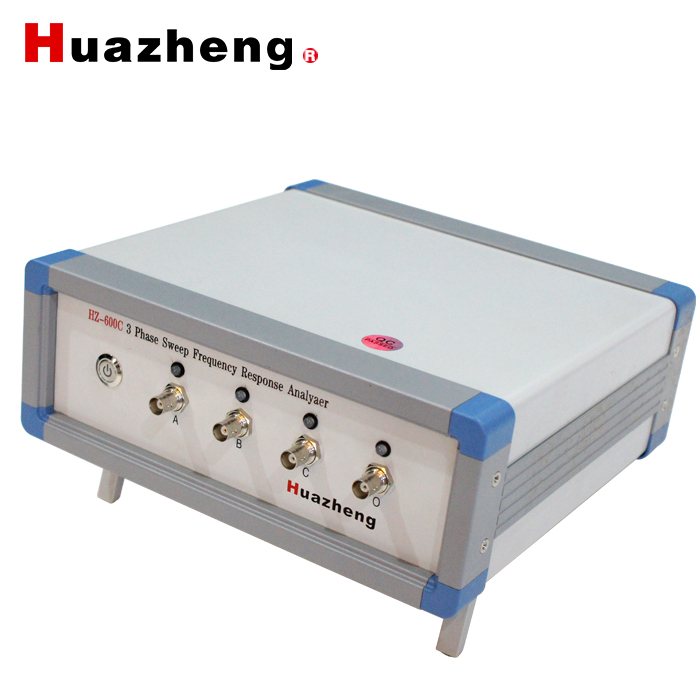

HZ-600C Transformer Winding Deformation Tester
