How to check the multi-function vacuum oil filter?

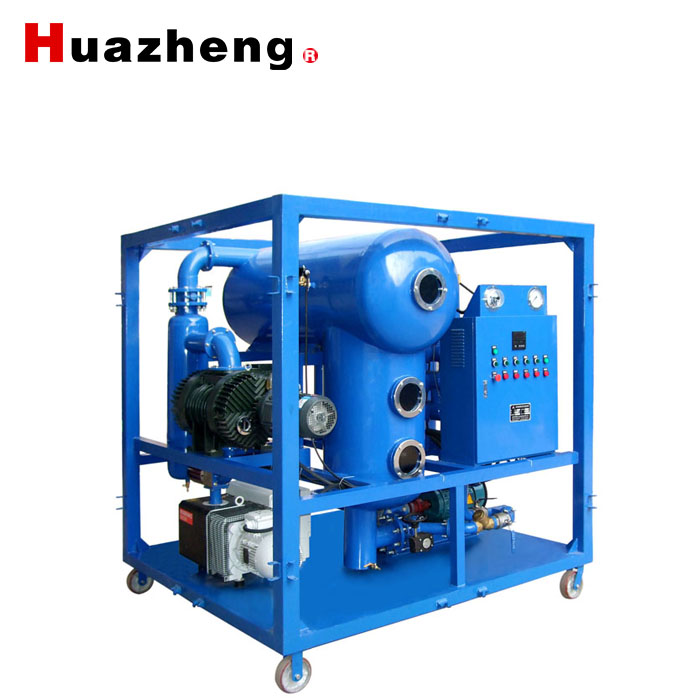

Multifunctional vacuum oil filter is also called vacuum high-efficiency oil filter, oil filter, vacuum oil purifier, which has the characteristics of small size, light weight, convenient movement, low noise, long continuous working time, stable performance and convenient operation. It is an ideal equipment for filtering moisture, gas and impurity particles in transformer oil, steam turbine oil, engine oil below 40#, hydraulic oil, etc. In industrial and mining enterprises such as power plants, power stations, substations, electrical appliances manufacturers, oil refineries, and petrochemical industries.

The vacuum oil purifier is designed according to the different working principles of the boiling point of water and oil. It is composed of the vacuum system heating tank fine filter, condenser, primary filter, water tank, vacuum pump, oil discharge pump pressure and electrical cabinet. The vacuum pump can extract the air in the vacuum tank for a while to form a vacuum. Under the influence of the outside world, the oil liquid enters the primary filter through the pipeline enterprise with the entrance to remove the particles with large capacity, and then we enter the rapid heating reaction tank. After continuous heating, the oil at 40~75°C passes through the data automatic oil drift valve. This valve is an automatic management control technology to increase the amount of oil entering the Chinese vacuum tank to balance the market. After studying the analysis of the heated oil, the oil is separated into semi-mist through the rapid rotation of the jet wing, and the water in the oil evaporates rapidly into water vapor and is continuously sucked into the condenser by the vacuum pump for a long time. The water vapor entering the condenser is cooled and then returned to the original form of water and released. The oil in the tank is heated under vacuum conditions, and is discharged into the fine filter by the oil discharge pump, and the impurities on the surface of the particles need to be filtered out through oil filter paper or filter elements, so that Complete the whole process of the information vacuum oil filter to quickly and effectively remove impurities, water and gas in the oil, so that the clean oil can be discharged from the oil outlet.

Multifunctional vacuum oil filter inspection:

1. Check the electrical equipment of the vacuum oil filter (various instruments) should be regularly tested by the testing unit, and can only be put into use after passing the test.

2. Whether the machine is installed stably, and there should be no shaking or vibration during the test run.

3. Check whether the installation company of the oil inlet and outlet pipes is correct, whether the external pipe system can be installed firmly, and the connection between the hose and the metal pipe should be tightened with monkey hoops, and measures should be taken to prevent the oil pipeline equipment from falling off during operation.

4. Check whether the external power supply is correct, and whether the connected power cord meets the capacity requirements of the oil filter.

5. Check that the casing should be reliably grounded.

6. Check all rotating parts for blockage.

7. Carry out trial run, check and the steering of motors such as oil pumps and vacuum pumps should better meet the design requirements.

8. Check whether the cooling water connection is reliable and whether the waterway is smooth.

9. Check whether the on-site fire extinguishing equipment meets the requirements.
