I.Overvview

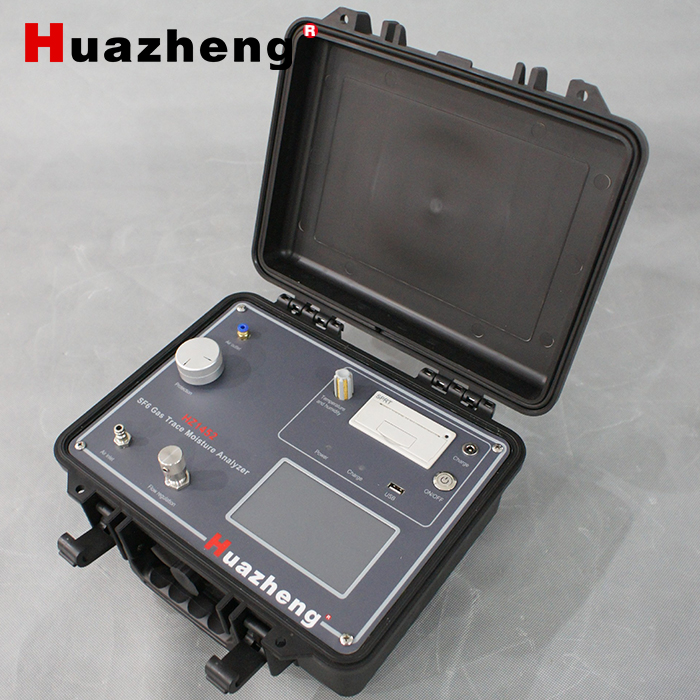

HZ1452 SF6 Gas Trace Moisture Tester is an intelligent measuring instrument independently developed by our company. This product is developed and designed according to the national power industry standard DL/T506-2007《Measurement method of insulating gas humidity in sulfur hexafluoride electrical equipment》, using the original imported high-precision dew point transmitter and advanced digital circuit control technology.

The instrument adopts intelligent self calibration technology, bright color display (touch screen), high precision, fast response, free switching of multiple functions, friendly human-computer interaction interface, real-time display of test data and dynamic display of measurement curve. At the same time, the instrument also has an automatic drying tube, which can shorten the measurement time. The instrument has built-in high-capacity rechargeable lithium battery pack, provides ultra long standby time, and is equipped with standard USB interface to export historical data.

The instrument has the advantages of wide measurement range, fast response time, short measurement cycle, intuitive display and convenient operation. It can be applied to the humidity measurement of air, nitrogen, inert gas and any gas without corrosive medium, especially the humidity measurement of SF6 gas. It can be used by departments such as electric power, petrochemical, metallurgy, environmental protection and research institutes, and has a high cost performance ratio.

II.Technical Features And Parameters

1、Technical features

n Portable design：lighter and more convenient to carry and use

n Fast measurement：measure immediately after the instrument calibration, and the humidity value can be quickly obtained

n Short measurement time and gas saving：the gas consumption during measurement is only about 2L (101.2kpa)

n Data storage：mass storage, up to 100 groups of test data can be stored

n Comprehensive display items：the LCD displays dew point value, current temperature micro water value, 20 ℃ micro water value, ambient temperature, ambient humidity, time and date, battery power, etc

n The humidity value can be automatically converted to the standard value at 20 ℃

n Curve tracking：real-time data curve tracking, dew point change trend is clear and intuitive

n USB interface：historical data can be exported

n Built in power supply：built in 6800mAh rechargeable lithium battery, sufficient at one time and can work continuously for 8 hours

2、Technical parameter

1) Measuring range：

Dew point：-80℃～+20℃

Micro water content：0～19999ppm

2) Measurement accuracy：

±2℃(-60℃~-50℃)

±1℃(-49℃~+20℃)(Scope of work)

4) Resolution ratio：

Dew point：0.1℃

Micro water content：1ppm

5) Measuring time：≤3 Minutes/point

6) Sampling flow：0.6～1.0L/min

7) Display mode：Color touch screen display, full Chinese interface, with              backlight

8) Power supply：lithium battery can work continuously for 8 hours with overcharge protection

9) Inspection method: self calibration function after startup

10) Working temperature：－40℃～＋80℃
